Export & Sharing

How to share a worksheet, export the graph, and get code output from your expression.

Use a share link to open the same expression and its annotations. To share:

Click Share, or press ⌘K or Ctrl+K and search "Share".
The Share panel shows the link for the current worksheet.
Click Copy to copy the URL to the clipboard.
Send the URL to anyone. When they open it, Logic Studio will load with the same expression.

Note

The link carries the expression, customised display names, and declared variable types, ranges, and enum values. Inputs constraints, the selected binding and solver, notebook entries, and browser preferences are not included. Set any required Inputs constraints again after opening the link. Anyone with the link can read the shared expression.

Graph export (PNG / SVG)

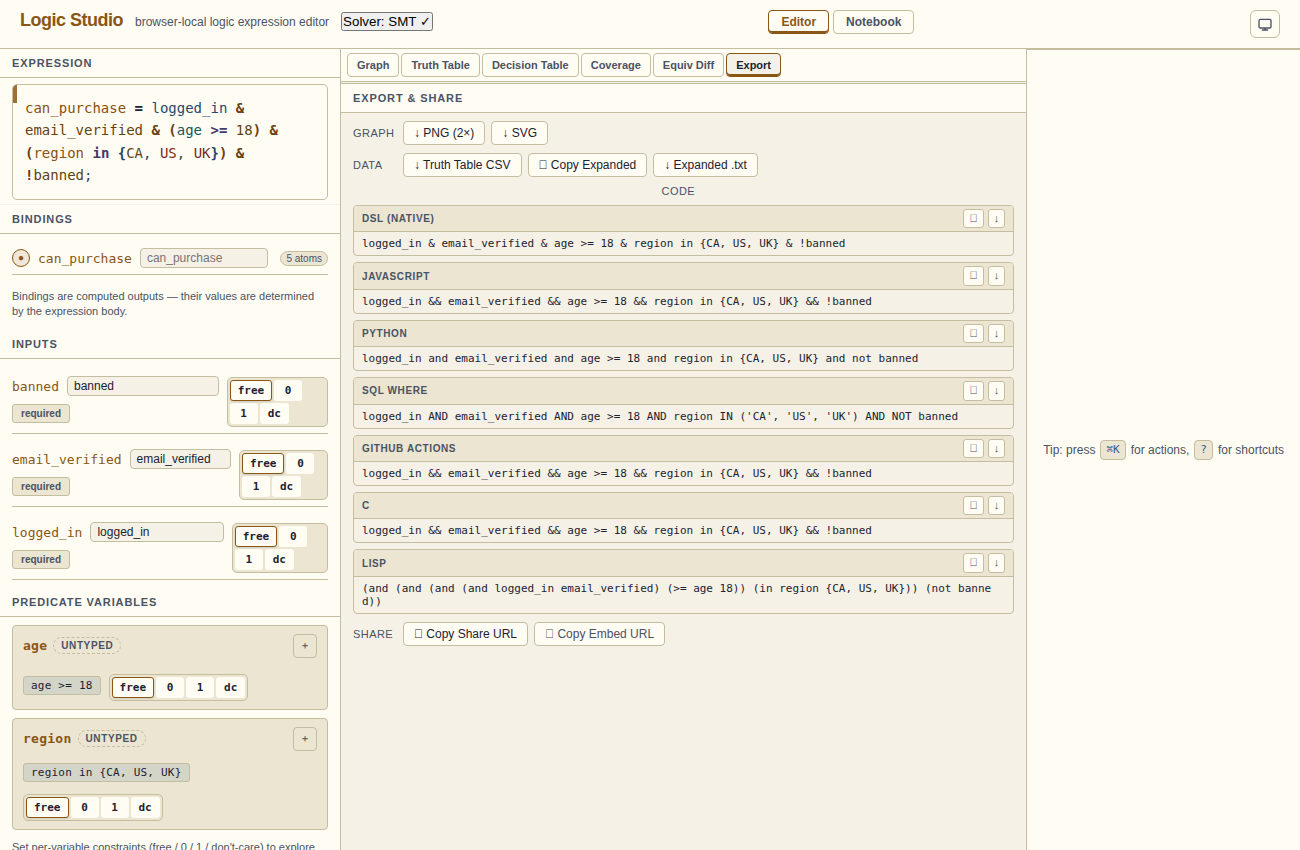

The Export tab provides buttons to download the graph as a PNG or SVG image:

PNG: rasterised at screen resolution. Suitable for documents and presentations.
SVG: vector. Preserves text and edges at any zoom level. The exported SVG embeds the current theme colours.

Code export

The Export panel (and the Import/Export section in the left panel) lets you export the expression as executable code in several languages:

Language	Output
JavaScript	A `function()` that returns the boolean value
Python	A `def()` that returns the boolean value
C	A `bool` function or macro
SQL	A `WHERE` clause fragment
GitHub Actions	A `if:` expression for workflow conditions
Lisp	An S-expression

Importing from code

The Import/Export section in the left panel also accepts code paste for import. Select the source language, paste the code, and click Import. Logic Studio attempts to parse the code and load it as a Logic Studio expression.

Import support is best-effort. Supported inputs: JavaScript boolean expressions, Python boolean expressions, GitHub Actions condition strings, SQL WHERE clause fragments.

Notebook

The Notebook view is a lightweight saved expressions store. Click Save in the Notebook to record the current expression with a name and optional tags and notes. Saved entries can be loaded, searched, and deleted.

Notebook entries stay in this browser. Export entries you want to retain before clearing browser data.
